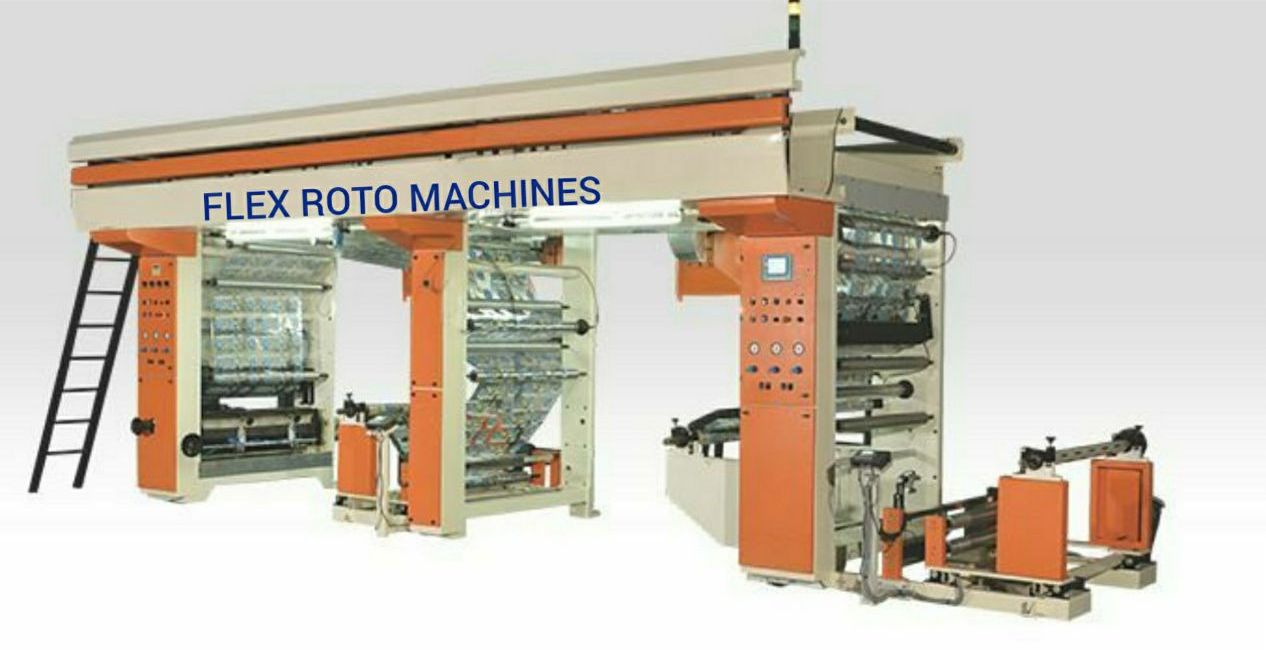

Solvent Based Flexible Packaging Lamination Machine

We are actively engaged in offering high quality assortment of Solvent Based Flexible Packaging Lamination Machine. A. C. Drive based closed loop controller for web handling by using latest generation of electronics Entire machine operation is controlled and supervises by the high performance motion controller having its own intelligent software. Master operator control panel consists of touch screen operating interface facilitates ease in operation. Safety of operator, machine and electronic modules are achieved with the help of necessary hardware protection and intelligent software routines.

Technical Specifications:

• - Web Width : 600 – 1200mm
• - 5 Drive System for Coating Unit, Laminating Unit, Both Un-winder & Re-winder
• - Plate Thickness – 45mm
• - Machine Max. Speed – 150meters
• - Max. Diameter : 800mm
• - Drying Tunnel Length – 21 feet
• - Hot Air Temp : 70 – 120
• - Nip Operated – Pneumatically
• - Heating System : Hot Air Generator (Diesel fire or Wood Fire)
• - Fully pneumatically lifting tunnels and impressions rollers, Doctor blade, Lay and Rolls.
• - Comfortable exhaust system for solvent fumes.
• - Uniform heating system.
• - Exhaust System : 5 HP
• - Material: Polyester/Poly/BOPP etc.
• - Web Aliners (03 nos.) for Both Unwinders& 01 SRA
• - Motors – A.C. Motors
• - Drying Chamber Operated – Pneumatically
• - Digital Temp. Indicator

Features:

• - Low power consumption
• - Easy to use
• - High performance
