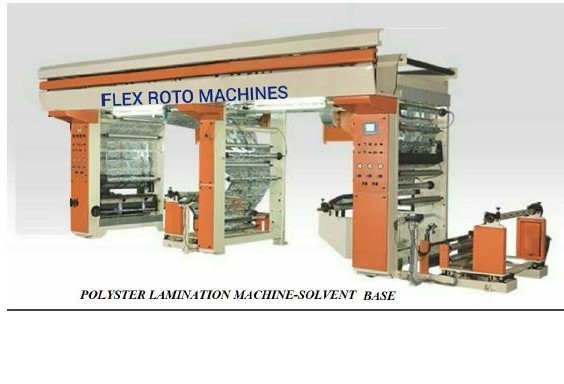

Polyster Lamination Machine - Solvant Base

Technical Specifications:

• - Web Width: 400 – 2400mm
• - Unwind Rewind Diameter: 600 - 1000mm
• - Hot Air Temp: 50 – 150 / 250°C
• - Machine Speed: 60 – 200 M/Min.
• - Heat Source: Hot Air Generator / Thermic Fluid System (Optional)
• - Exhaust: 3/5 HP
• - Synchronized Drive: 5 HP / 5 / 7.5,10 / 3 HP for Coater
• - Nip, Rewind & Positive Drive (Optional)
• - Material to be Laminated: Polyester/Poly/Paper/BOPP/Aluminum Foil/HDPE Fabrics etc.

Salient Features:

• - Heavy duty C.I. Cast iron & Heavy fabricated structure
• - Gravure type coating system
• - Liner type impression pressure assembly actuated with pneumatic piston for rubber roll Doctor blade and Nip Roller
• - Fully insulated imported special glass wool sheet fitted in the panel (Top side & Bottom) For controlling heat loss
• - One & One Slit type counter air flow arrangement, Divided equally are placed against roller for proper web support
• - Exhaust are distributed through-out the length of drying chamber & individual exhaust duct for each zone
• - Digital temperature controller with indicator & PT 100 sensor for each Zone
• - Inside heating for Nip Steel roller
• - Heavy duty Shaft types fix Re-winder with motor

Rewind Station:

• - A. C. synchronize Drive with Load cell
• - Center winding system / Surface

Hot Air Generator:

• - Diesel / Fired Air Heater
• - Thermic fluid Heater with Blower

Coating Unit:

• - Independent A.C. Drive
• - Pre – Heating / Exhaust

Unwind Station:

• - Tension control Brake Unit with load cell feedback (Pneumatic/Motorized)
• - Moveable unwind with web guide

Optional Attachment:

• - Air Shaft
• - Pull roll assembly (In feed drive)
• - May bar / Reverse roll, Air knife Three roll
• - Wet Lamination arrangement
• - Extra blower & Exhaust Individual for each zone
• - Chill Roll
• - Bow Roller
• - Ink Circulating with Viscosity Control
• - Touch Screen Operated control for all drive
